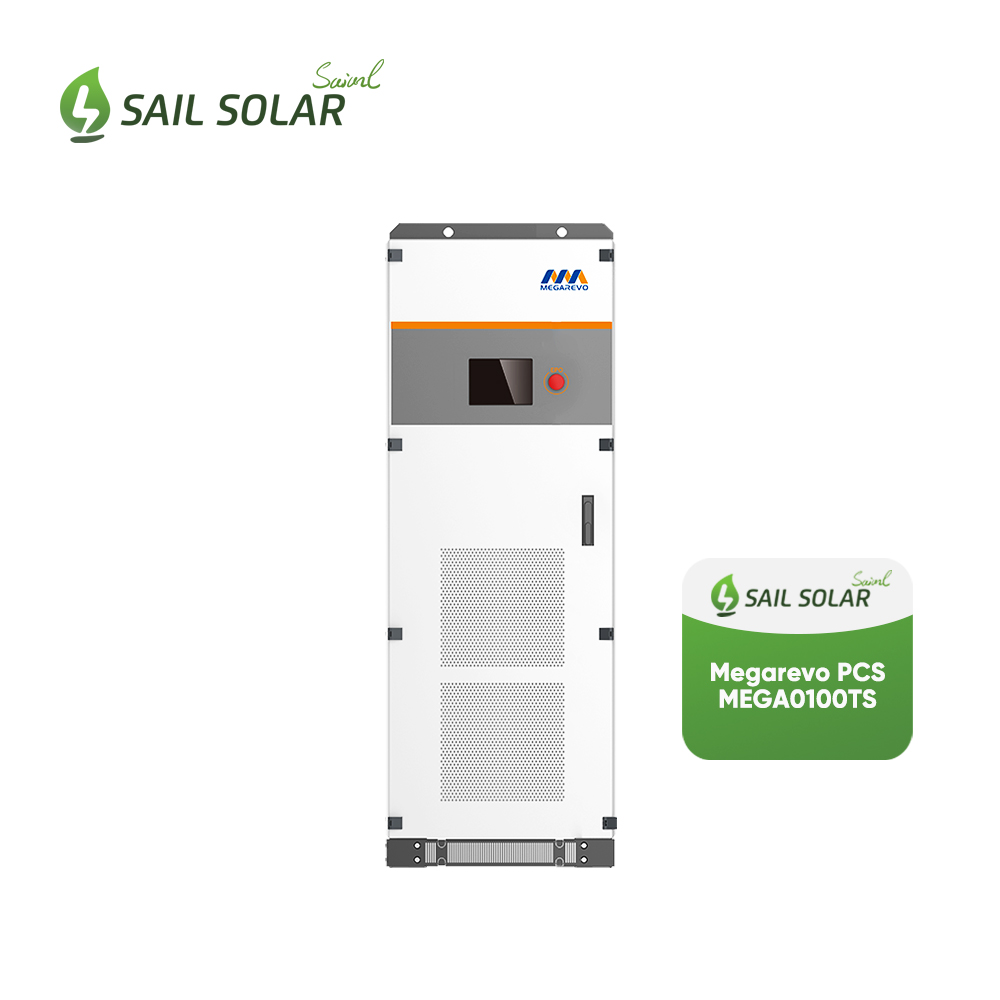

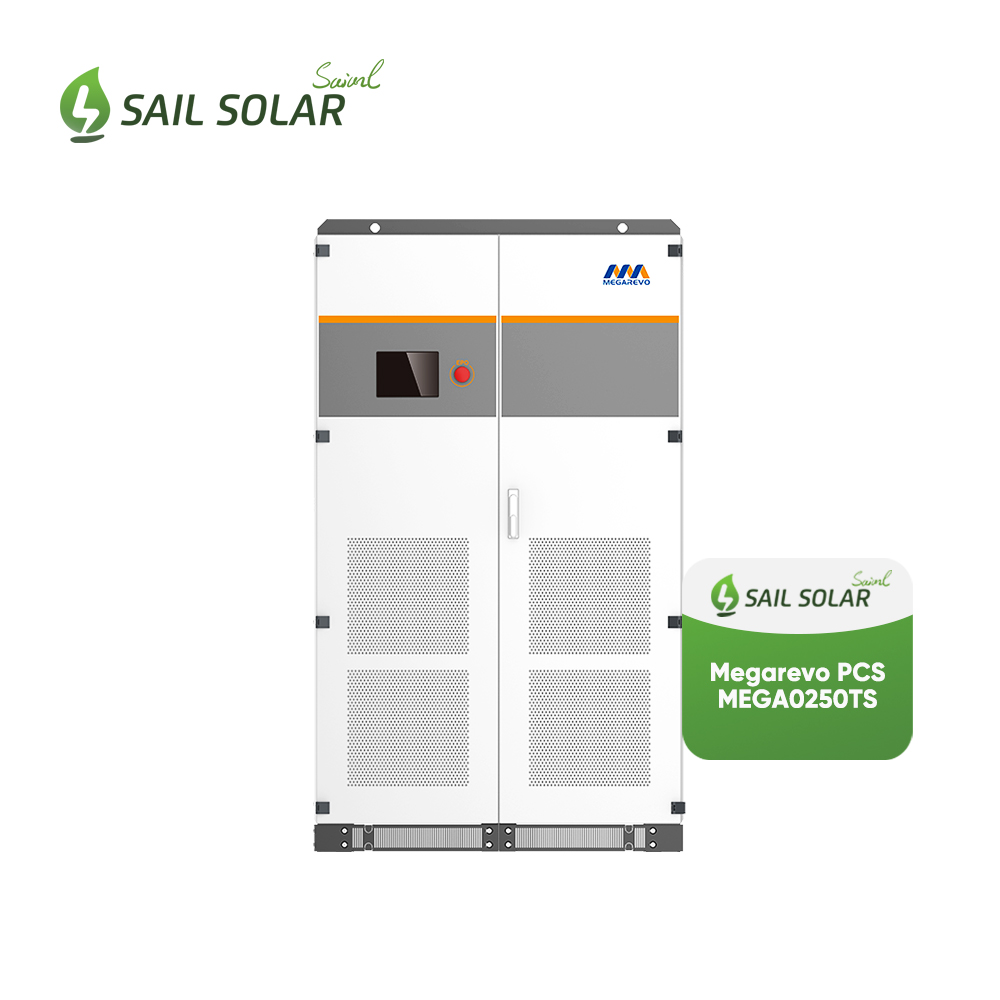

Megarevo PCS MEGA TS series solar inverter features an integrated design, combining a photovoltaic controller, energy storage converter, and grid-connected/off-grid automatic switching unit, built-in isolation transformer, capable of withstanding impact loads, significantly improving deployment efficiency and reducing installation costs. It is an ideal choice for large-scale hybrid energy storage systems.
Markenname :
MegarevoLeistungsbereich :
100/250/500KWAkku-Typ :
Lithium /Lead-acidMaximale Eingangsleistung :
100/250/500KWMaximale Ausgangsleistung :
165/275/550KWKommunikation mit BMS :
RS485, CANMaximale Eingangsgleichspannung (V) :
850VIP-Bewertung :
IP21Batteriespannung :
420~850V
Product Highlights of PCS MEGA TS series:
* Supports multiple battery types, including lead-acid, fuel cell, and lithium-ion batteries. The Battery Management System (BMS) supports RS485, CAN, and Ethernet communication.
* Accepts EMS dispatch; communication options include RS485, CAN, and Ethernet.
* Offers five operating modes: Manual, Peak Shaving and Valley Filling, Backup Power, Grid Steady-State Capacity Expansion, and Grid Transient Capacity Expansion.
* Supports AC parallel operation, supporting up to four parallel devices.
* Possesses high and low voltage ride-through capability.
* Provides autonomous and controllable frequency and voltage regulation.
* Features off-grid independent inverter functionality, enabling the construction of microgrid systems using energy storage converters to ensure power supply to critical loads.
* Has strong off-grid three-phase unbalanced load capacity.
* Employs a power frequency design, providing strong surge protection.
* Employs dual auxiliary power supply modes and redundant design to improve reliability.
* Independent airflow design for excellent heat dissipation.
* Built-in isolation transformer to accommodate impact loads.
Basic Functions

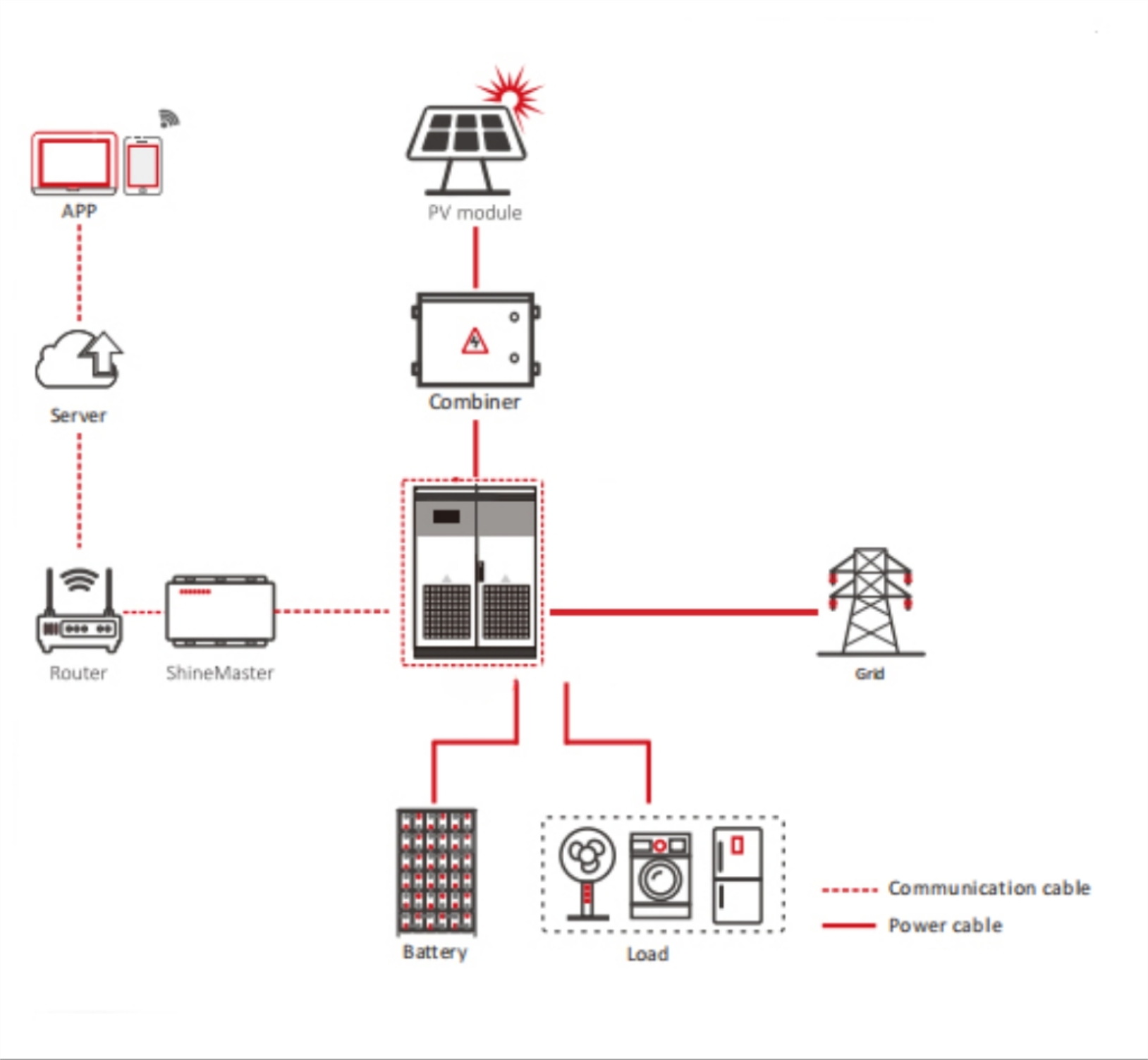

Grid-connected Operation
The inverter is directly connected to the power grid, enabling bidirectional energy flow: it can feed energy from the batteries to the grid or draw energy from the grid to charge the batteries.
Off-grid Inversion
In the absence of a grid connection, the energy storage inverter can operate independently, supplying power to connected loads.
Grid-connected / Off-grid Switching
This function is exclusive to models supporting seamless grid-connected/off-grid transition. In grid-connected mode, the inverter can switch directly between charging and discharging states without entering standby mode. When the grid is unavailable, the inverter operates autonomously in off-grid mode.
Energy Storage Battery Charging and Discharging Control
All models in the PCS series support charging and discharging operations in grid-connected mode. Users can configure the charge/discharge depth according to their requirements.
Redundant Parallel Connection
For large-scale applications, multiple inverters can be configured in a redundant parallel setup to enhance system redundancy, capacity, and overall reliability.
Safe and reliable
Built-in complete safety protection function, including overcharge, overload, short circuit, etc.
Support manual disconnection of DC input and AC grid, and one-key emergency stop;
Efficient and stable
Wide DC input voltage range;
The efficiency is more than 98.7%;
MPPT accuracy tracking accuracy ≥ 99.9%;
Intelligent& Friendly
Wide temperature operation capability from -40°C to +60°C, altitude height ≥3000m the capacity will be derated；
AC/DC Dual redundant power supply for the control system.
Economical and durable
The design life of the scheme is more than 25 years;
