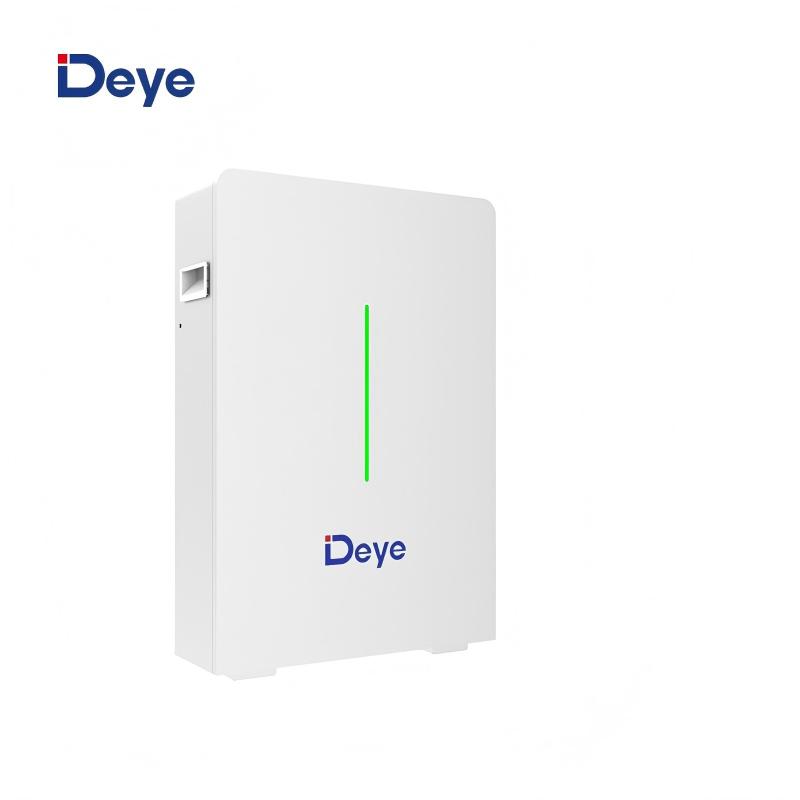

RW-G10.6 is a wall-mounted lithium battery for residential energy storage from Deye. It utilizes safe and durable lithium iron phosphate (LiFePO4) technology, with a nominal capacity of 10.64kWh and a usable capacity of 9.58kWh. It supports parallel expansion of up to 32 units, reaching a total capacity of 340kWh. With a charging current of 200A and a discharging current of 240A. It features a built-in circuit breaker and intelligent BMS, a cycle life of ≥6000 cycles, and a 5-year warranty. It is an ideal choice for home systems.
Markenname :
DeyeTyp :
Lithium BatteryNennspannung :
51.2VBatteriekapazität :
208AHAnzahl der Zyklen :
6000Effizienz der Ladung :
0.5CEffizienz der Entladung :
0.5CKommunikation :
CAN2.0, RS485Farbe und OEM :
White&SupportedGarantie :
10 years
Technical Specifications
Model: RW-G10.6
Battery Chemistry LifePO4
Capacity 208Ah
Scalability Max 32pcs pack in parallel
Nominal Voltage 51.2v
Operating Voltage 44.8v-57.6v
Nominal Energy 10.64kwh
Weight Approximate 96kg
Dimension(W*H*D) 600*750*200mm
The multiple battery systems is supported.It is suitable for scenarios where the inverter power is 15kw or higher.

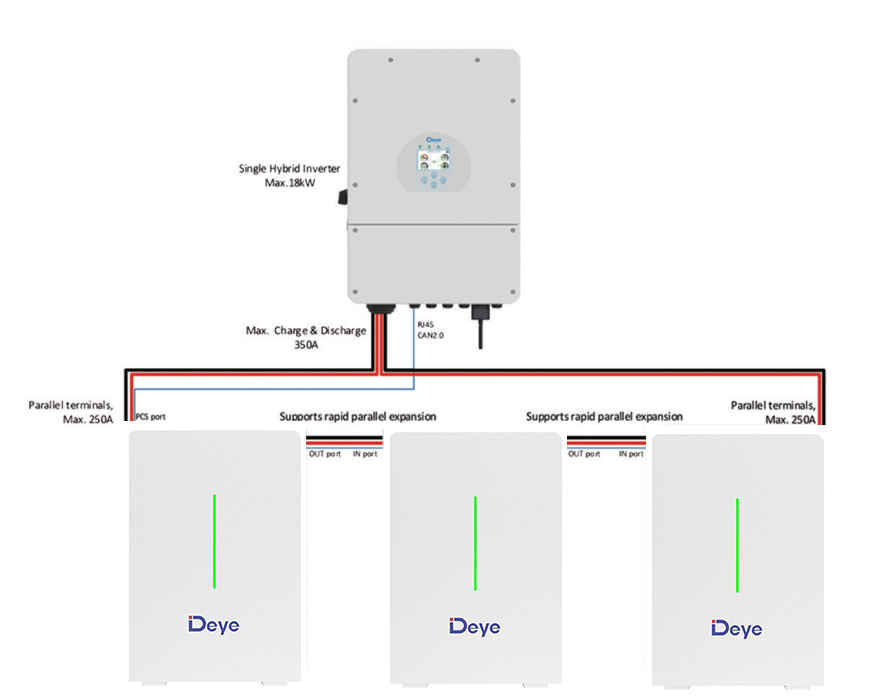

It is suitable for scenarios where the inverter power ＞ 15kW). Schematic diagram of parallel connection of high-power system batteries:
Product application solutions

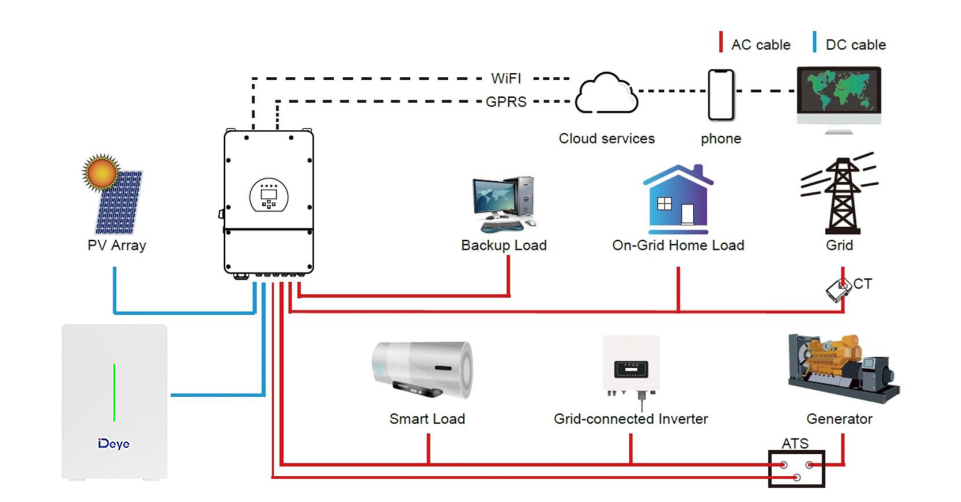

The left illustration shows basic application of this battery. It also includes devices to have a complete running system.
-Generator or Utility
-PV modules
-Hybrid Inverters (Charge & Discharge)
With a wide range of applications and diverse energy solutions, it meets personalized energy needs.
