RW-F16 supports up to 8kW high power output, connectable to 32 units for scalable capacity up to 512kWh. Adopting LiFePO4 battery with over 6000 cycles, it features 160A built-in circuit breaker for safe charge and discharge. It operates in a wide temperature range, supports remote monitoring and firmware upgrades via Deye inverter, and allows flexible wall-mounted or floor-mounted installation. With 90% round-trip efficiency and 14.4kWh usable energy, it boasts an IP20 indoor design resistant to up to 95% high humidity.
Markenname :
DeyeTyp :
Lithium BatteryNennspannung :
51.2VBatteriekapazität :
314AHAnzahl der Zyklen :
6000Effizienz der Ladung :
0.5CEffizienz der Entladung :
0.5CKommunikation :
CAN2.0, RS485Farbe und OEM :
White&SupportedGarantie :
10 years

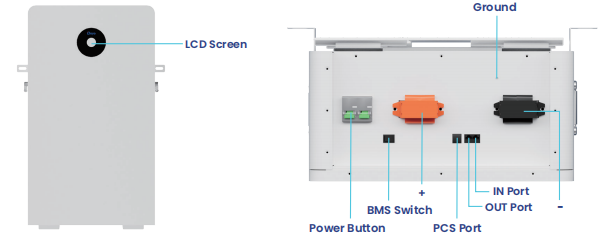

Product Detailed Introductions
◎ LCD Screen:To indicate the state of the battery system.
◎ Power Button:To power on /off the battery.
◎ BMS Switch:To turn ON/OFF the BMS of the battery.
◎ -:Battery negative terminal connection position.
◎ +:Battery positive terminal connection position.

Residential Energy Storage Solution Example

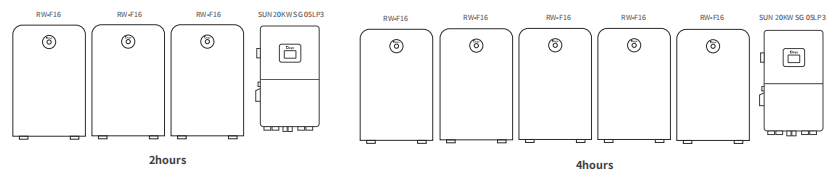

The multiple battery systems is supported.It is suitable for scenarios where the inverter power is 20kw.
When used with the Deye SUN-20K-SG05LP3-EU-SM2 Hybrid inverter, can accept three units in parallel, with a capacity up to 48 kWh, supporting 2 hours of load operation.
Alternatively, it can accept five units in parallel, with a capacity up to 80 kWh, supporting 4 hours of load operation.

Product application solutions

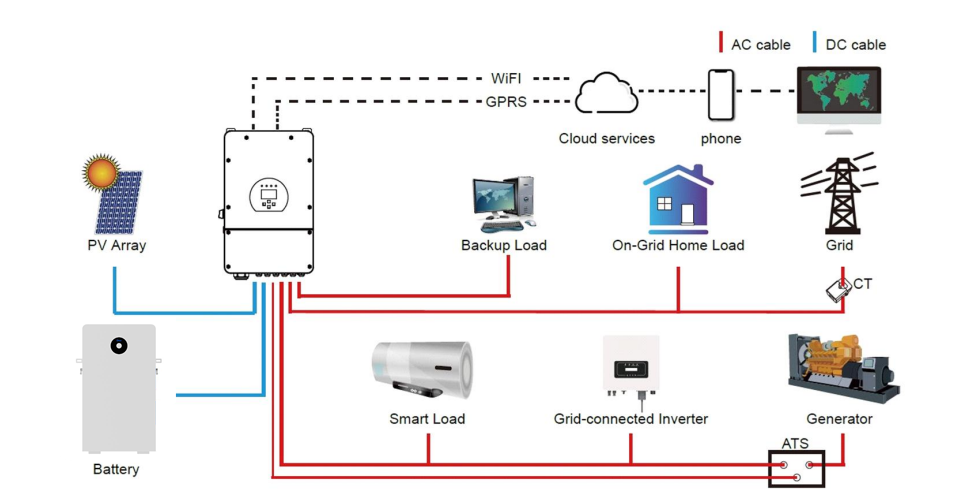

The left illustration shows basic application of this battery. It also includes devices to have a complete running system.
-Generator or Utility
-PV modules
-Hybrid Inverters (Charge & Discharge)
With a wide range of applications and diverse energy solutions, it meets personalized energy needs.
