Deye RW-10.2 Lithium Ion Batteries 51.2V 200AH Solar Battery Lithium 10.24KWH Energy Storage

The RW-F10.2-B is a lithium iron phosphate battery developed by DEYE. It provides reliable power for various equipment and systems, making it ideal for applications requiring high power, limited installation space, low-temperature operation, and long cycle life.

  • Markenname :

    Deye
  • Typ :

    Lithium Battery
  • Nennspannung :

    51.2V
  • Batteriekapazität :

    200AH
  • Anzahl der Zyklen :

    6000
  • Effizienz der Ladung :

    0.5C
  • Effizienz der Entladung :

    0.5C
  • Kommunikation :

    CAN2.0, RS485
  • #

    IP65 protection suitable for both indoor and outdoor installations, ensuring durability in harsh conditions.
  • #

    Long warranty and long lifecycle: Deep cycles 6000 times, supported by 10-year warranty.
  • #

    Wide Temperature Range: Operates reliably from -30℃ to -60℃. Supports operation in low-temperature environments.
  • #

    Module Flexibility:with a scalable design, the system supports up to 32 units, providing a total capacity of 326kwh.
The module is non-toxic and environmental-friendly. BMS provides protection against overdischarge, over-charge, over-current, and extreme temperatures, to automatically magage charge/discharge states and balance current and voltage.Supporting wall-mounted and floor-mounted, saving installation space.

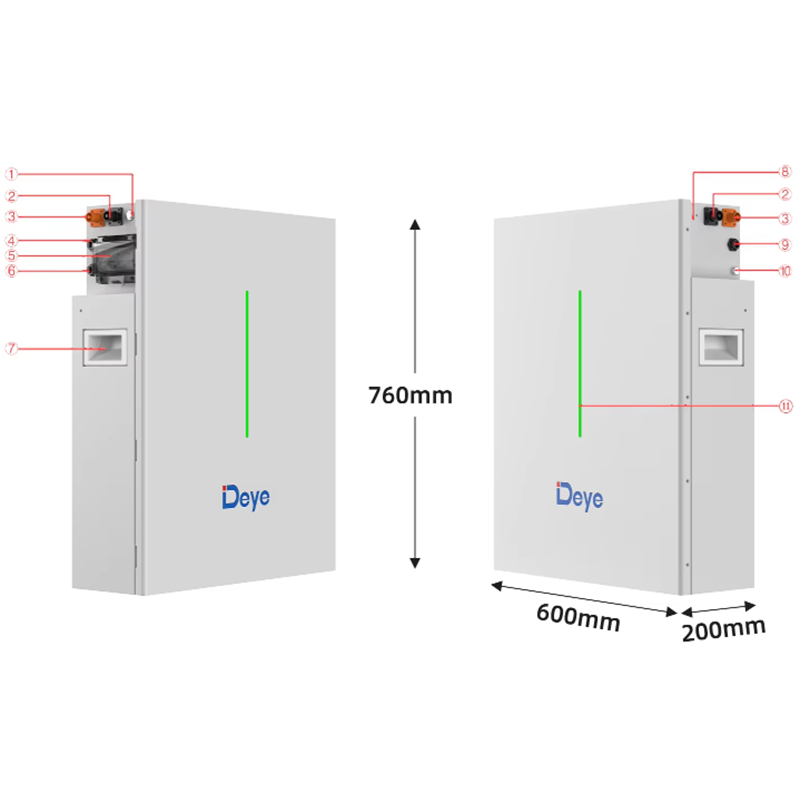

This following sheet shows the interface functions of the front and size panel.

1.BMS Swich 7.Handle
2.Battery negative 8.Grounding bolt
3.Battery positive 9.Parallel communication port OUT
4.Inverter CAN/RS485 port PCS 10.Breather valve
5.Macro circuit breaker 11.Battery Indicators
6.Parallel communication port IN

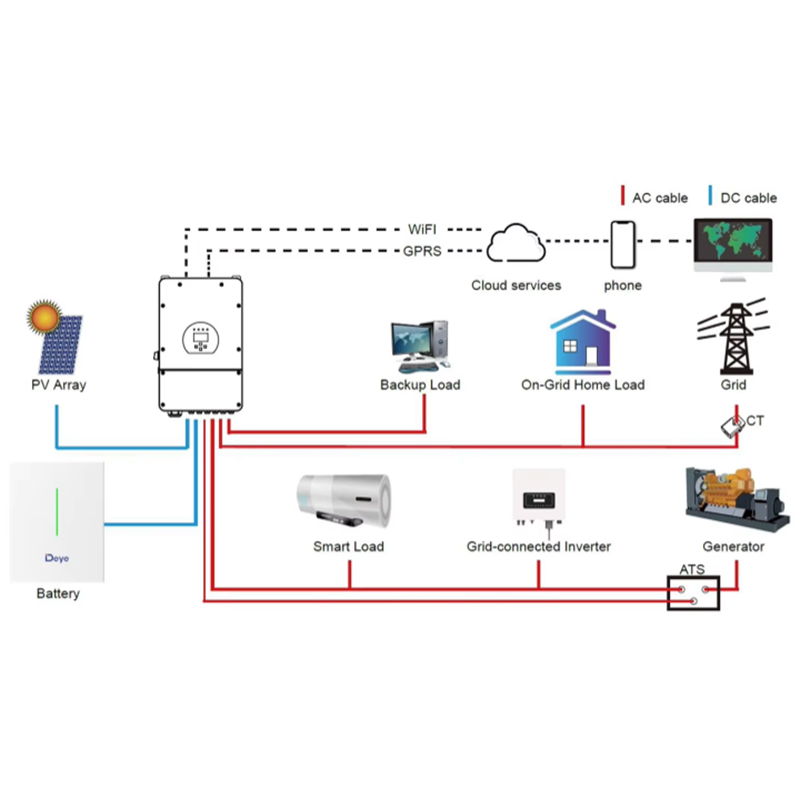

The right picture shows the basic application of this battery. To form a complete operating system, the following devices are requireded: 1.A generator or utility grid  2.PV modules  3.A low-voltage hybrid inverter (for charging and discharging)

Main Specifications:

Module: RW-F10.2

Battery Chemistry: Lifepo4

Operating Voltage(V): 43.2~57.8V

Recommend charge and discharge current(A): 100A

Dimension(W*H*D):600*830*200mm

Weight Approximate: 107kg
