BOS-A-PACK is a high-performance lithium battery module designed for modern energy storage systems. Featuring advanced LiFePO4 technology and a compact modular design, it provides safe, reliable, and scalable power storage for residential and commercial applications.
Markenname :
DeyeTyp :
LiFePo4Nennspannung :
38.4VBatteriekapazität :
7.68Anzahl der Zyklen :
≥6000 (25±2°C, 0.5C / 0.5C, EOL70%)Effizienz der Ladung :
100% @0.2CEffizienz der Entladung :
96~99% @1CKommunikation :
CAN2.0Farbe und OEM :
WhiteGarantie :
10 years
BOS-G is a high-voltage lithium-ion battery system. It provides a reliable backup power supply for supermarkets, banks, schools, farms and small factories to smooth the load curve and achieve peak load transfer. It can also improve the stability of renewable systems and promote the application of renewable energy.
It is characterized by high integration, good reliability, long service life, wide working temperature range, etc. The battery energy storage system is modular. Each battery module has a capacity of 5.12 kWh. It can support up to 12 battery modules in series. Its total energy can be expanded from 15.36kWh to 61.44 kWh.

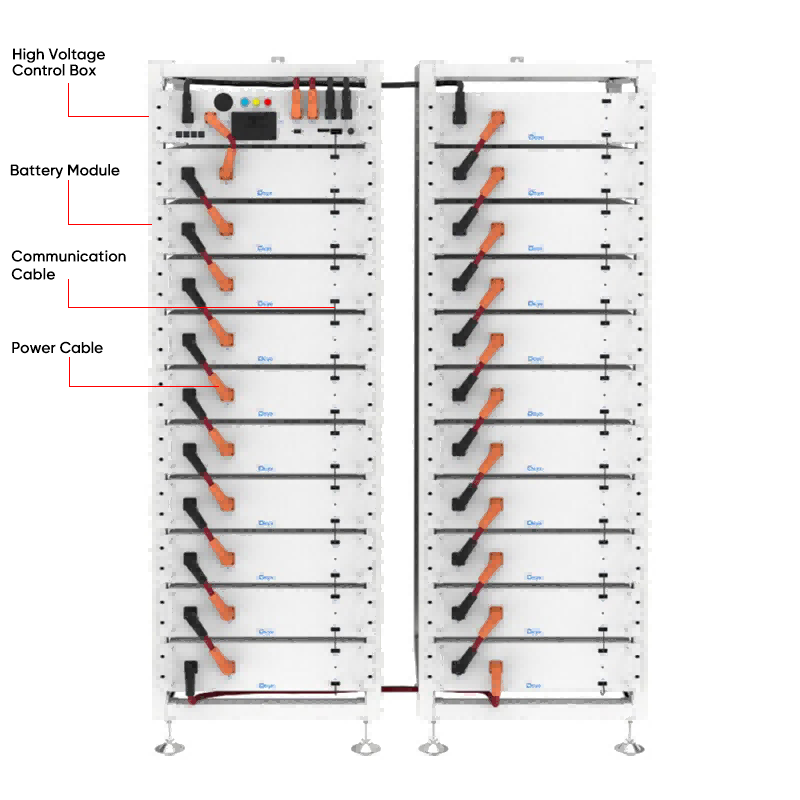

Each battery pack and PDU has four connectors. When 12 battery packs are connected in series, and other connectors are no longer in use, use a dustproof cover to prevent unnecessary damage to the connectors.
Key Specifications
Power: 7.68 kW hybrid inverter + battery ready

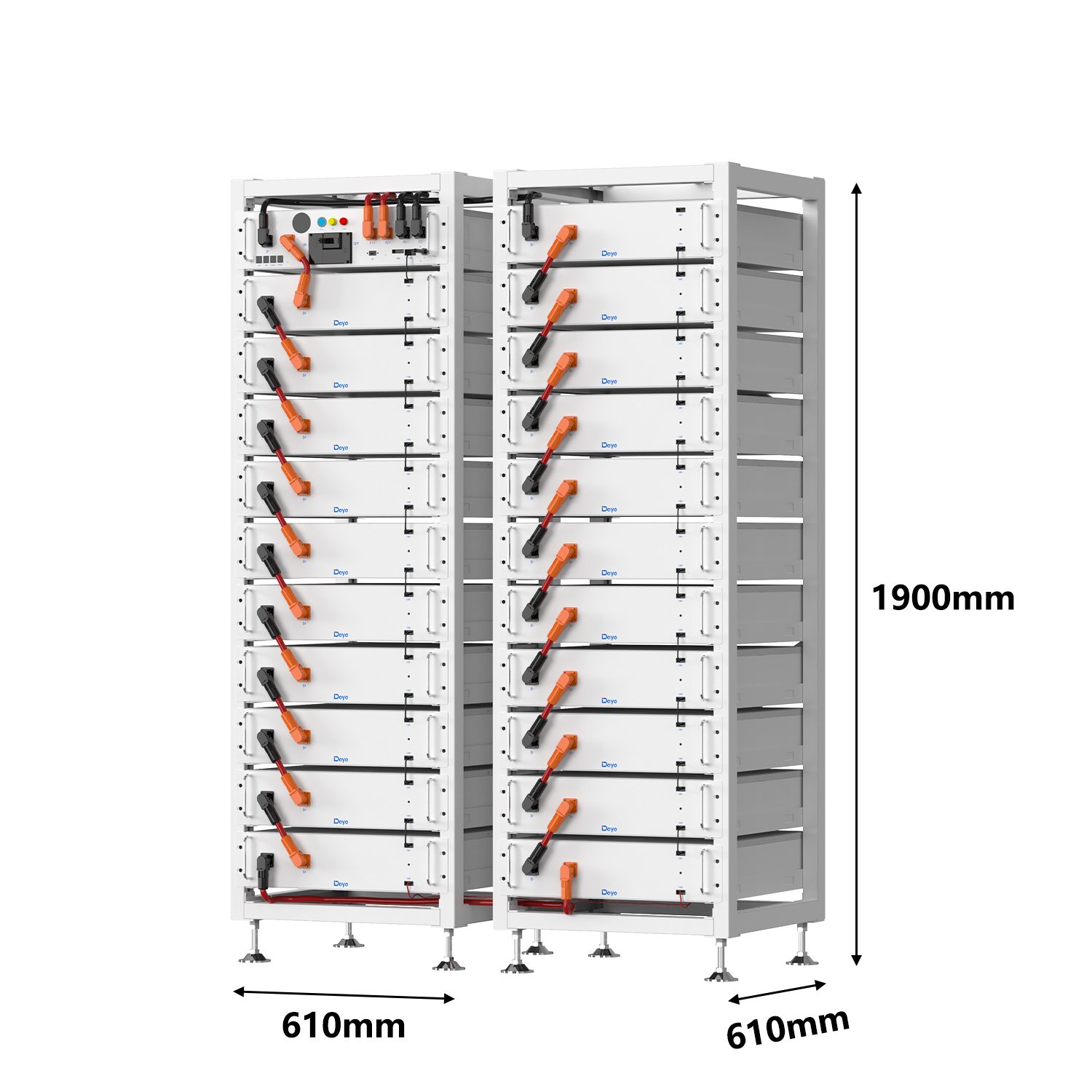

Dimensions (H × W × D): 1900 mm × 610 mm × 610 mm
Input sources: PV solar, power grid, alternator/generator
Output classification: Critical, intelligent, and ordinary load outputs for smart energy prioritization
Why Choose BOS-A-PACK7.68？
Space-efficient footprint: The 610×610 mm base minimizes floor space usage while the 1900 mm height accommodates high-capacity battery modules.
Integrated energy management: Works with distribution box and electricity meter to optimize self-consumption, peak shaving, and backup power.
Reliable backup: Automatically powers critical loads during grid outages, ensuring essential appliances stay online.

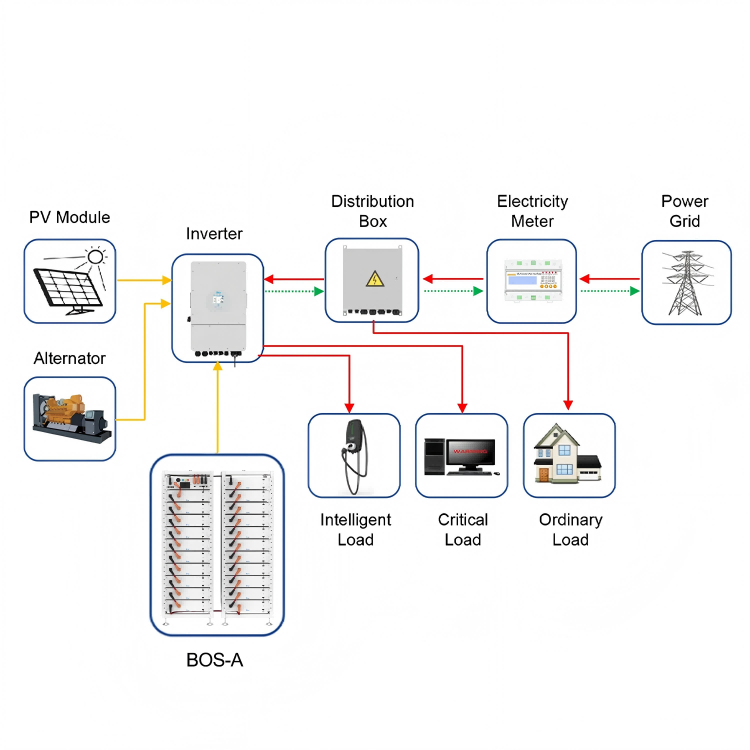

-Complete Energy Integration: Efficiently manages power flow between PV Modules, the Power Grid, and an optional Alternator (Generator) , ensuring maximum utilization of solar energy while maintaining grid/generator backup.
-Intelligent Load Management: Features dedicated outputs for Intelligent, Critical, and Ordinary Loads. Automatically sheds non-essential loads during grid failures to preserve battery power for critical appliances.
-Seamless Backup Protection: Supports seamless switching for Critical Loads, ensuring sensitive equipment remains powered during blackouts.
-High Efficiency: Optimized for 7.68kW power class, ideal for residential and light commercial applications.
-Easy Monitoring: Compatible with smart meters and distribution boxes for real-time energy monitoring via the Distribution Box and Electricity Meter integration.
Certification
